Applications Civil aviation, Highway system, Railway system, Metro transportation, Logistics, Customs ports, Government departments, Convention centers, Public places Technology Features: 1.  Dual view design; display horizontal and vertical images simultaneously; identify overlapping articles and contraband easily  and precisely. Applications Civil aviation, Highway system, Railway system, Metro transportation, Logistics, Customs ports, Government departments, Convention centers, Public places Technology Features: 1.  Dual view design; display horizontal and vertical images simultaneously; identify overlapping articles and contraband easily  and precisely.Â

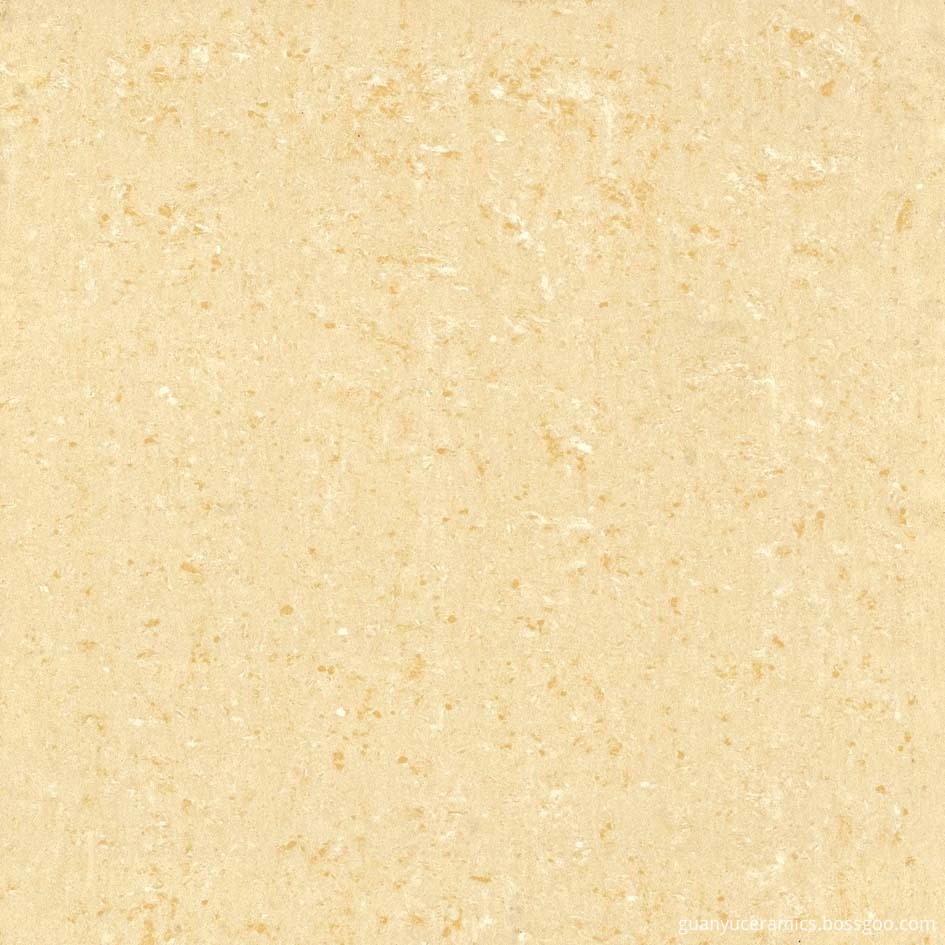

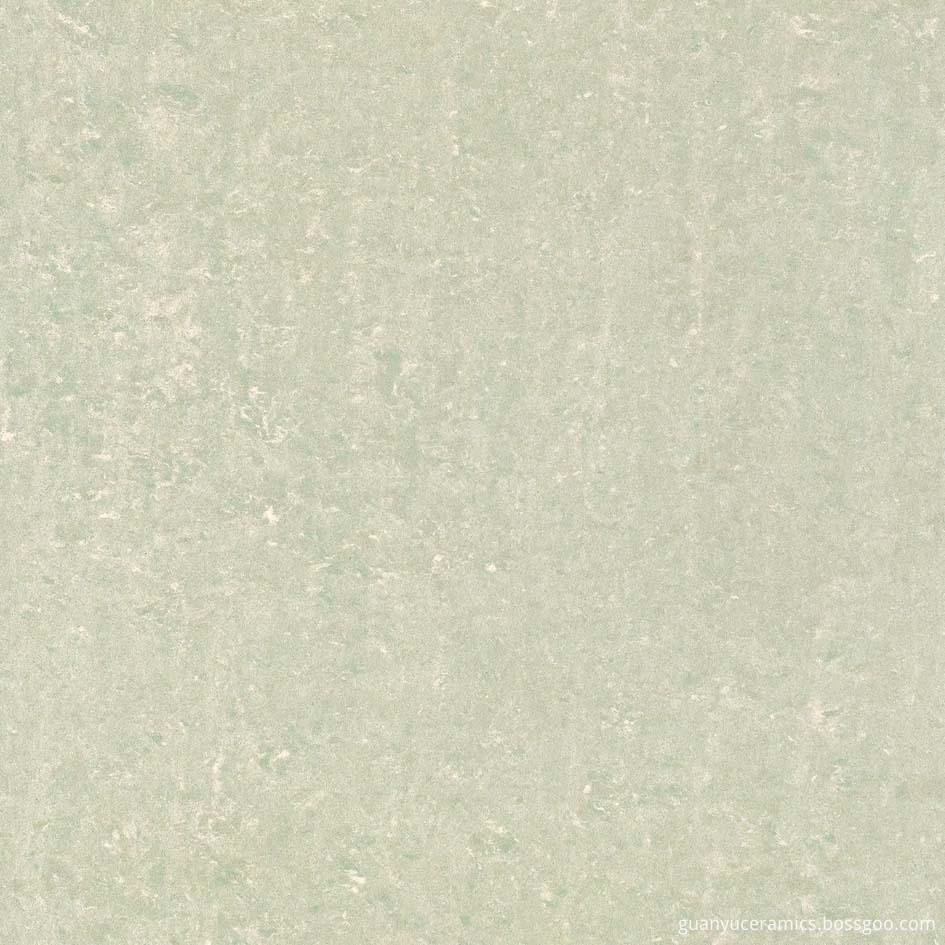

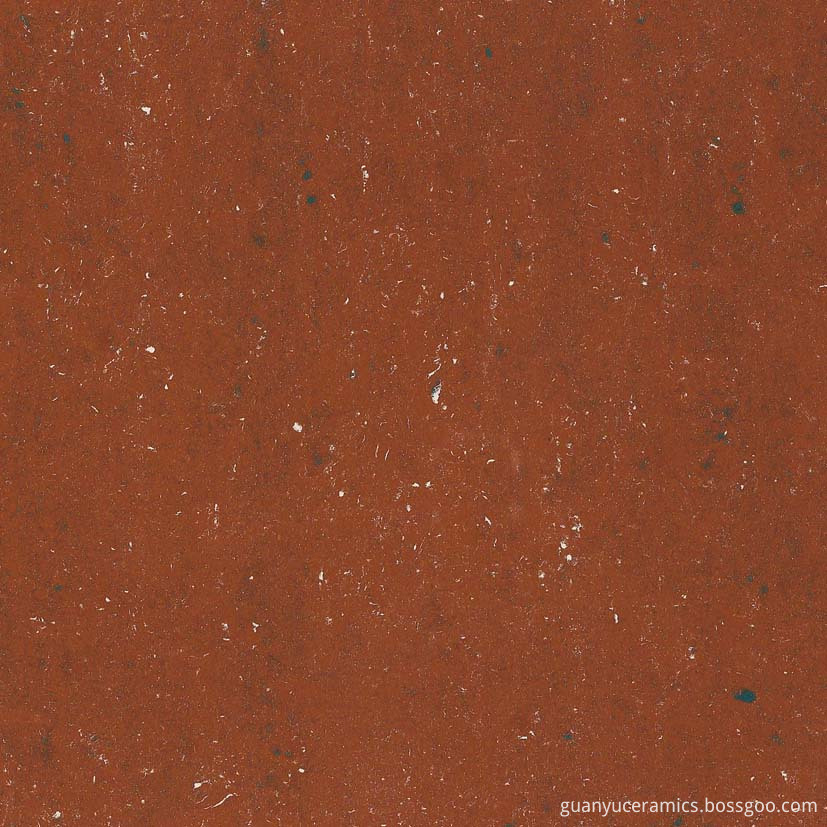

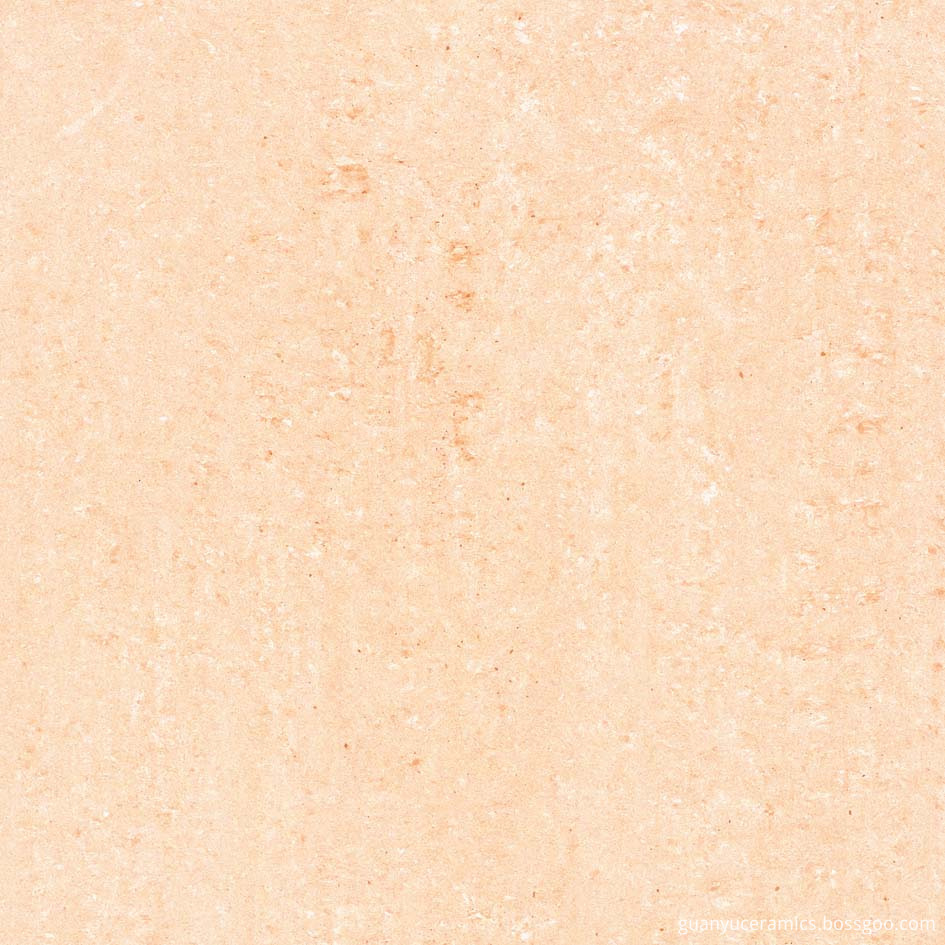

Guanyu Ceramics Tiles are top quality, nano-polished, low water absorption, rectified. Unique grains like gurgling water make you like being in a vivid fairyland, the natural curve shows the special grace and true tenderness, a fresh and tasteful life is unfolding before your eyes.
First Choice Double-Loading Polished Porcelain Tile / Competitive Price Double-Loading Porcelain Tile / Popular Double-Loading Porcelain Tile
Application:
1. Flooring, wall tiles in a bathroom, kitchen and other living space.
3.Indoor/Outdoor: Indoor,Commercial Area.
Packing information:
In neutral cartons and put on wooden pallet.
Why Guanyu Ceramics?
Guanyu Ceramics, specializing in making mosaics, polished tiles, rustic tiles and glazed internal wall tiles, makes our brand "Guanyu Ceramics" popular around the world and established worldwide distribution Channels in many countries and areas under the support of many clients.
We will supply you:
- Good Quality:
We got ISO9001:2000, ISO14001:2004, GB/T28001-2001 certificate, compulsory 3C certificate and strictly carries out their standard systems. And our inspection deptment supervise all the goods and it makes the goods are what your expected.
- Reasonable Price:
Our reasonable price will help you to enlarge your market.
- 10 years tiles exporting experience:
Over 10 years of exporting experience on tiles guarantee that all the steps of exporting can goes smoothly and it saves your time and money of getting goods.
- Meet Your Needs:
If your requirement go beyond our tiles, please contact us with your tiles designs. We are always happy to discuss your needs.
Please kindly contact us for further details if you are interested, thank you!
Yellow Polished Porcelain Floor Tile,Double-Loading Porcelain Floor Tile,Low W.A. Yellow Floor Porcelain Tile Foshan Guanyu Group , http://www.guanyu-group.com
SA100100DÂ is a new product of dual view x-ray security inspection equipment. It can display horizontal and vertical images by two independent generators, and can quickly detect organic, inorganic, mixtures or light metals according to the effective atomic number of detected objects, which can identify overlapping articles and contraband easily and precisely.
Â
Â
Physical Specifications
Â
Unit weight (kgs)
1100
Unit size (mm)
4864.3(L)*1305(W)*1922(H) mm
after packed in wooden pallet -Â
Â
Gross weight (kgs)
1300
Packing size
#1: 290*150*220cm
Â
#2: 113*91*142cm
Â
Â
General Specifications
Â
Tunnel size(mm)
1000(L)*1000(W)
Conveyor Speed(m/s)
0.22
Conveyor height(mm)Â
342
Conveyor Max Load(kgs)
200
X ray dose per each inspection
1.5 μGy
X ray leakageÂ
<0.25 μGy / h
Penetration
38mm steel
Wire Resolution
dia 0.0787mm copper wire (AWG40)
Penetration Resolution
dia 0.16mm copper wire (AWG34) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Spatial resolution:
dia1.0mm,Vertical: dia1.0mm
Power Consumption
max. 1KW
Noise
< 58 dB
Film Safety
Guarantee ASA/ISO1600 FilmÂ
Â
Â
X-ray Generator (single)
Â
Anode Voltage
160 KV * 2
Anode power
0.4-1.2mA (adjustable)
Generate angle
80 degree upwardÂ
Generate direct
from bottom to topÂ
Cooling / Duty Cycle
Oil Cooling /100%Â
Brand
Spellman/Chinese
Â
Â
Image System
Â
X-ray Sensor
L-Shaped Photodiode Array (multi-energetic)Â Â , 12bit Deep
Image Display
High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement
1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall
 All preceding images recallable, retrieval
Explosives & Narcotics Detection
Explosives & narcotics alarm and highlight according to atomic number signatureÂ
High Density Region Alarm
Impenetrable region alarm and highlight, for possible concealing of threats and contrabandsÂ
Threat Image Projection
Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capabilityÂ
Image Archive
Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions
Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications
Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process
24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags
Â
Â
Operating Environment
Â
Operation temperature/Humidity
 0ºC-45ºC / 5%-95%(non-condensing)Â
Storage Temperature/Humidity
 -40ºCto 70ºC / 5%-95%(non-condensing)Â
Operation Power
 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS
 15mins, 30mins, 60mins etc, optional
Â
Â
Computer and other
Â
Monitor
High Resolution Color, LCD Accord, 17inch
Hard Disk
SEAGATE 500G 3.5"
CPU
G1610 2.6G
Storage
2GB 1600MHz DDR3 Innodisk
Main board
H61 SYM76993VGGAÂ
Â
Â
Â
Â
2. New x-ray protection technology
Â
3. Multi-functions image processing system
Â
4. EI-TIP( Threat Image Projection) function
Â
5. Shiny clear imagesÂ
Â
6. Any selection of the image magnified area
Â
7. Collect the high-speed parallel of detection data
Â
8. Removable split structure with independent consoleÂ
Â
9. Big tunnel design with multi-functions operator interface
Â
10. Support JPG&BMP image transformation format to USB
Â
SA100100DÂ is a new product of dual view x-ray security inspection equipment. It can display horizontal and vertical images by two independent generators, and can quickly detect organic, inorganic, mixtures or light metals according to the effective atomic number of detected objects, which can identify overlapping articles and contraband easily and precisely.
Â
Â
Physical Specifications
Â
Unit weight (kgs)
1100
Unit size (mm)
4864.3(L)*1305(W)*1922(H) mm
after packed in wooden pallet -Â
Â
Gross weight (kgs)
1300
Packing size
#1: 290*150*220cm
Â
#2: 113*91*142cm
Â
Â
General Specifications
Â
Tunnel size(mm)
1000(L)*1000(W)
Conveyor Speed(m/s)
0.22
Conveyor height(mm)Â
342
Conveyor Max Load(kgs)
200
X ray dose per each inspection
1.5 μGy
X ray leakageÂ
<0.25 μGy / h
Penetration
38mm steel
Wire Resolution
dia 0.0787mm copper wire (AWG40)
Penetration Resolution
dia 0.16mm copper wire (AWG34) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Spatial resolution:
dia1.0mm,Vertical: dia1.0mm
Power Consumption
max. 1KW
Noise
< 58 dB
Film Safety
Guarantee ASA/ISO1600 FilmÂ
Â
Â
X-ray Generator (single)
Â
Anode Voltage
160 KV * 2
Anode power
0.4-1.2mA (adjustable)
Generate angle
80 degree upwardÂ
Generate direct
from bottom to topÂ
Cooling / Duty Cycle
Oil Cooling /100%Â
Brand
Spellman/Chinese
Â
Â
Image System
Â
X-ray Sensor
L-Shaped Photodiode Array (multi-energetic)Â Â , 12bit Deep
Image Display
High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement
1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall
 All preceding images recallable, retrieval
Explosives & Narcotics Detection
Explosives & narcotics alarm and highlight according to atomic number signatureÂ
High Density Region Alarm
Impenetrable region alarm and highlight, for possible concealing of threats and contrabandsÂ
Threat Image Projection
Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capabilityÂ
Image Archive
Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions
Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications
Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process
24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags
Â
Â
Operating Environment
Â
Operation temperature/Humidity
 0ºC-45ºC / 5%-95%(non-condensing)Â
Storage Temperature/Humidity
 -40ºCto 70ºC / 5%-95%(non-condensing)Â
Operation Power
 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS
 15mins, 30mins, 60mins etc, optional
Â
Â
Computer and other
Â
Monitor
High Resolution Color, LCD Accord, 17inch
Hard Disk
SEAGATE 500G 3.5"
CPU
G1610 2.6G
Storage
2GB 1600MHz DDR3 Innodisk
Main board
H61 SYM76993VGGAÂ
Â
Â
Â
Â
2. New x-ray protection technology
Â
3. Multi-functions image processing system
Â
4. EI-TIP( Threat Image Projection) function
Â
5. Shiny clear imagesÂ
Â
6. Any selection of the image magnified area
Â
7. Collect the high-speed parallel of detection data
Â
8. Removable split structure with independent consoleÂ
Â
9. Big tunnel design with multi-functions operator interface
Â
10. Support JPG&BMP image transformation format to USB
Â
2. Hotel lobby flooring, airport, super market, shopping mall, warehouse flooring big project etc.
SIZE: 600*600 mm: 4PCS/CTN, 32KG/CTN, 1.44SQM/CTN, 840CTN/20′, 1,209SQM/20′, 27,300KG/20′
SIZE:800*800 mm: 3PCS/CTN, 50KG/CTN, 1.92SQM/CTN, 540CTN/20′, 1,036SQM/20′, 27,270KG/20′
Airport X-ray Security Scanner Equipment Dual-view X-ray Luggage Inspection SA100100D
Model NO.: SA100100D
Penetration: 28 to 32 mm Steel
Tunnel Size: 1000(W)*1000(H)mm
Film Safety: Guarantee ISO 1600 Film
Lead time: 5-7 days after confirmed the order
Trademark: SAFE HI-TEC
Transport Package: Plywooden package
Specification: 10.6 CBM
Origin: China
HS Code: 9022191090
Model NO.: SA100100D
Penetration: 28 to 32 mm Steel
Tunnel Size: 1000(W)*1000(H)mm
Film Safety: Guarantee ISO 1600 Film
Lead time: 5-7 days after confirmed the order
Trademark: SAFE HI-TEC
Transport Package: Plywooden package
Specification: 10.6 CBM
Origin: China
HS Code: 9022191090
Airport X-ray Security Scanner Equipment Dual-view x-ray Luggage Inspection SA100100D
